200W FM Transmitter

Product Name 200W FM Transmitter

Msinghmonu84@gmail.com

FM Transmitter 200w wireless fm transmitter broadcast audio transmission accessoried

Specifics

Voltage	220v
Package	Yes
Brand Name	MS BROADCAST   Monu Singh Electronic Inventor/ Developer​
Model Number	MS 200
output power	0-200W
Color	Silver
Material	Aluminium alloy
Frequency Range	87.5-108MHz
support	USB key
Working Voltage	AC 220V

Descriptions

FM Transmitter 200w wireless fm transmitter broadcast audio transmission accessoried

Technical Parameter:

1.Working Voltage：AC220V/50Hz/60Hz

2.Working Current ﹤2A

3.Frequency Range 87.5~108MHz

4.Frequency Stability ±10PPM

5.Frequency Stepping 100KHz

6.Environment temperature -10℃~45℃

7.Output Impedance：50Ω

8.RF output power ：0W~200W

9.Harmonic, clutter radiation ≤－60dB

10.Audio distortion 0.2%

11.Frequency Response 50Hz~15000Hz

12.Separation ≥35 dB

13.Input level ≤15 dB V

14.Frequency Modulation±75KHZ

15.SNR ≥70dB

16.Size：44cm（L）*30 cm（W）*5 cm（H）

17.Net Weight： About 3.8kg

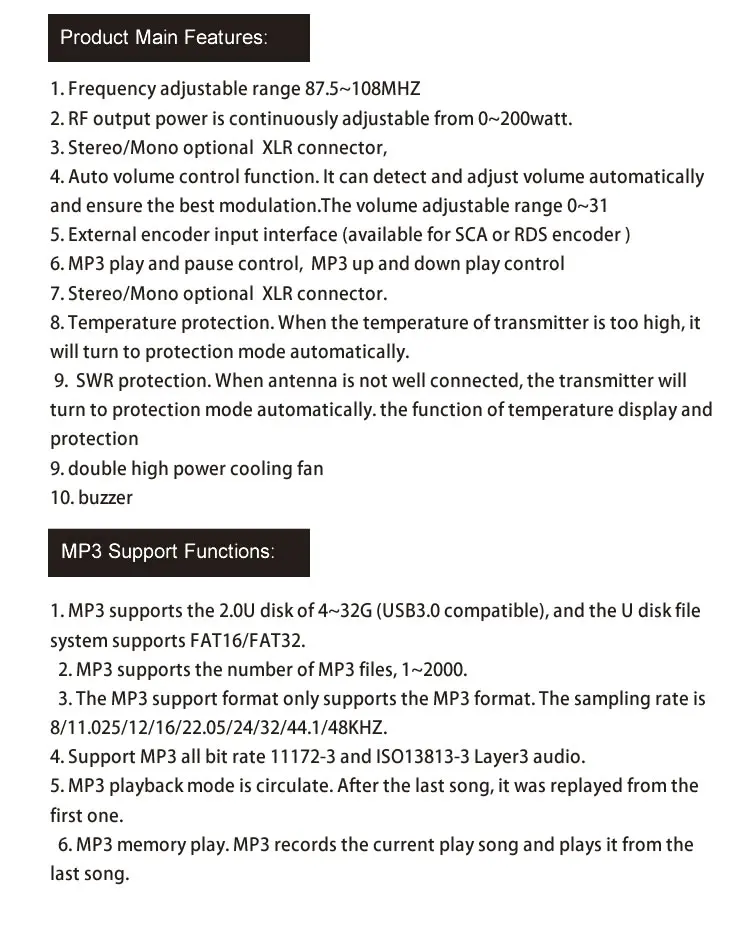

Product Feature:

 -Stereo/Mono optional

- RF output power is continuously adjustable from 0~200watt.

-One button controls all functions.

-Auto volume control function. It can detect and adjust volume automatically and ensure the best modulation.

-SWR protection. When antenna is not well connected, the transmitter will turn to protection mode automatically.

-Temperature protection. When the temperature of transmitter is too high, it will turn to protection mode automatically.

- External encoder input interface (available for SCA or RDS encoder )

Package includes:

1*200W FM Transmitter

1* Power Supply line

1*1/2 Dipole antenna Anti-rain with 20 meters cable

NOTE:

* Connect antenna first ,then connect the power supply, otherwise, transmitter will be burned out.
* Select an unused FM station in your area.
