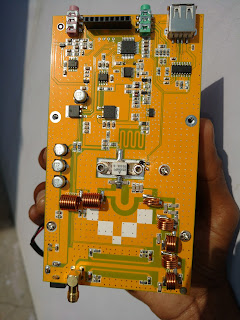

30w Fm transmitter kit assemble







30w fm transmitter kit.
Input current: 12v to 13.5 Dc volteg.
Input current :7A.
Output power: 30w, peak can reach 35w
Output impedance: 50 om
Working frequency: 76MHz-108MHz
A- Antenna matching SWR: 1.2 is best. the display should not be greater than 2.0 Used.
Board size: launch plate: 150*80*70mm.(L*W*H).
B- Long distance greater than 5 -8 km the premise is the open area, the antenna height is high enough
